External Gear Pumps

Home > Products > External Gear Pumps



External Gear Pumps    High Pressure Gear Pumps    Mono Block Gear Pumps

External Gear Pumps

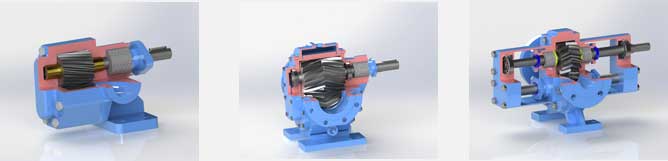

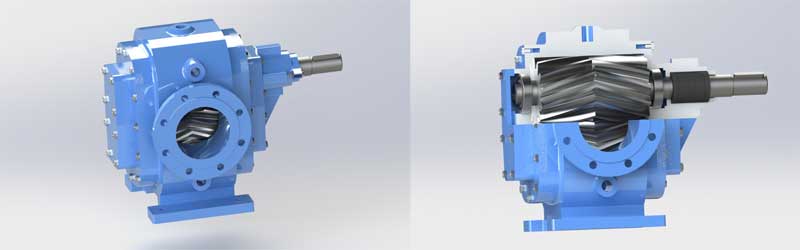

How Do The Gear Pumps Works ?

Gear Pumps are comprised of a fixed casing two (2) or more meshing gears of equal size. Normally one gear is coupled to the drive shaft while the other rums as an idler. The inderaction of the meshing gears and close tolarance of the casing, create the vacuum and the pressure which carry the fluid through the pump. Gear pump are usually bidirectional an produce no pulsation. The fluid being pumped lubricates the close tolerance wear surfaces, therefore this unit should not be allowed to run dr yor be used with abrasive laden liquids.



Transferred To Liquid :

Chocolate, Glucose, Cacao oil, Vegatable oil, Molasses, Animalfats, Gelatin, Paints, Adhesive, Solvents, Toluene, Paraffin, Wax, Detergent, Glyserine, Asphalt, Fuel-oil, Coustics, Shampoo, Bitumen, Mineral Oil, Natural Oil, Wine, Gazoline, Gum, Varnish, Ink Printers, Olive oil, Honey, Kerosene, Hot oil, Milk, Syrups, Cream, Astos, Soap Liquors, Tomato Juice, Naphtha, Greases, Alcohol, Crude oils, Coal Tar, Resin.

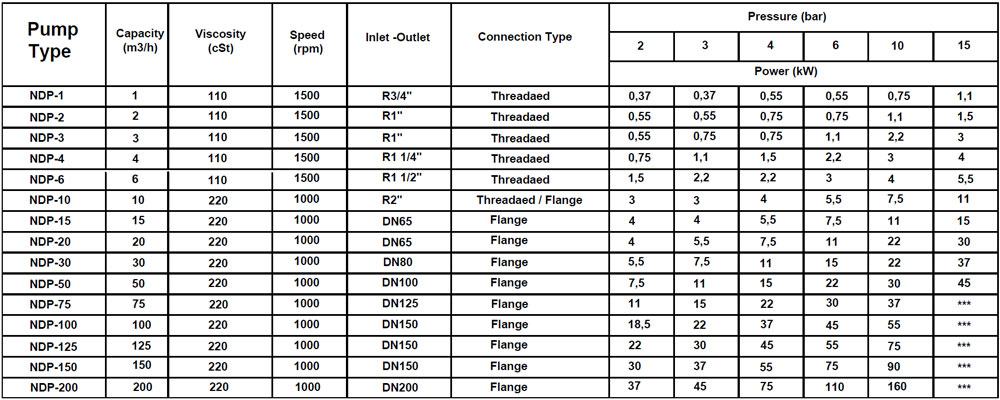

PUMP SELECTION CHART



  2D 3D PDF
NDP-0.5 Download Download Download
NDP-1 Download Download Download
NDP-2 Download Download Download
NDP-3 Download Download Download
NDP-4 Download Download Download
NDP-6 Download Download Download
NDP-10 Download Download Download
NDP-15 Download Download Download
NDP-20 Download Download Download
NDP-30 Download Download Download
NDP-50 Download Download Download
NDP-75 Download Download Download
NDP-100 Download Download Download
NDP-125 Download Download Download

Are you looking for a pump for your plant ?
